Our pre-drilled frames are easily assembled with minimal hand tools. (Unlike other products where drilling or field cutting is required). Main cover and doors are made from long life UV Resistant and Fire Retardant Poly with Fabric Backing. All fabric components feature heat welded seam construction. Unit features double zipper doors on both ends to allow drive though capability, and good ventilation. Each door contains a pocket for a rigid pole and grommets for securing them up during use. Each unit comes equipped with permanent anchor system and one door roll-up kit.

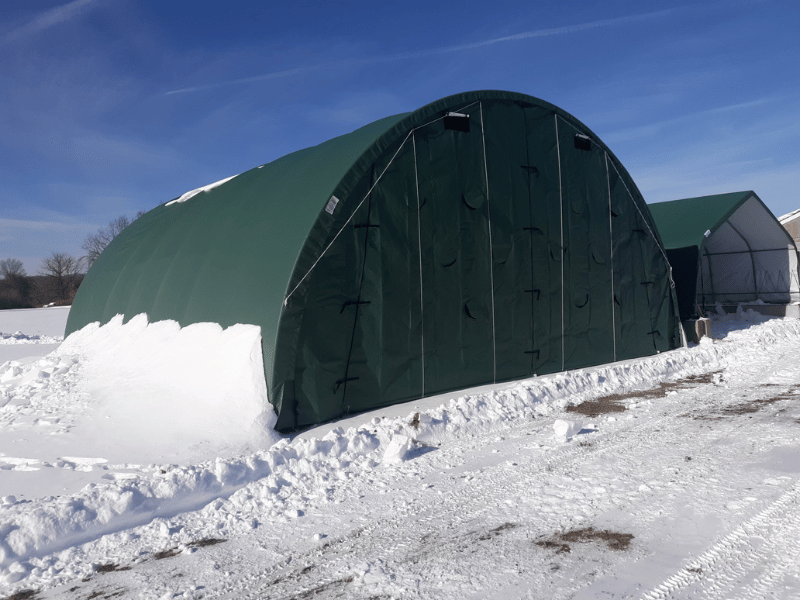

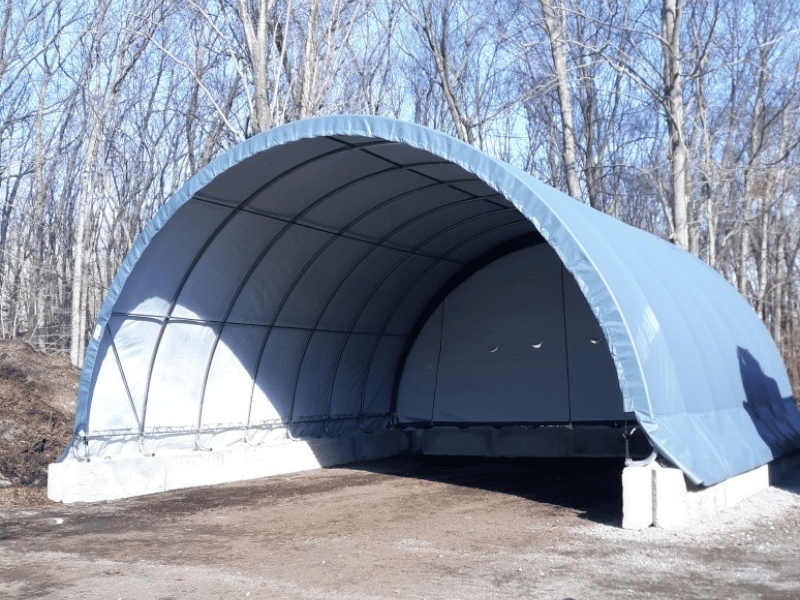

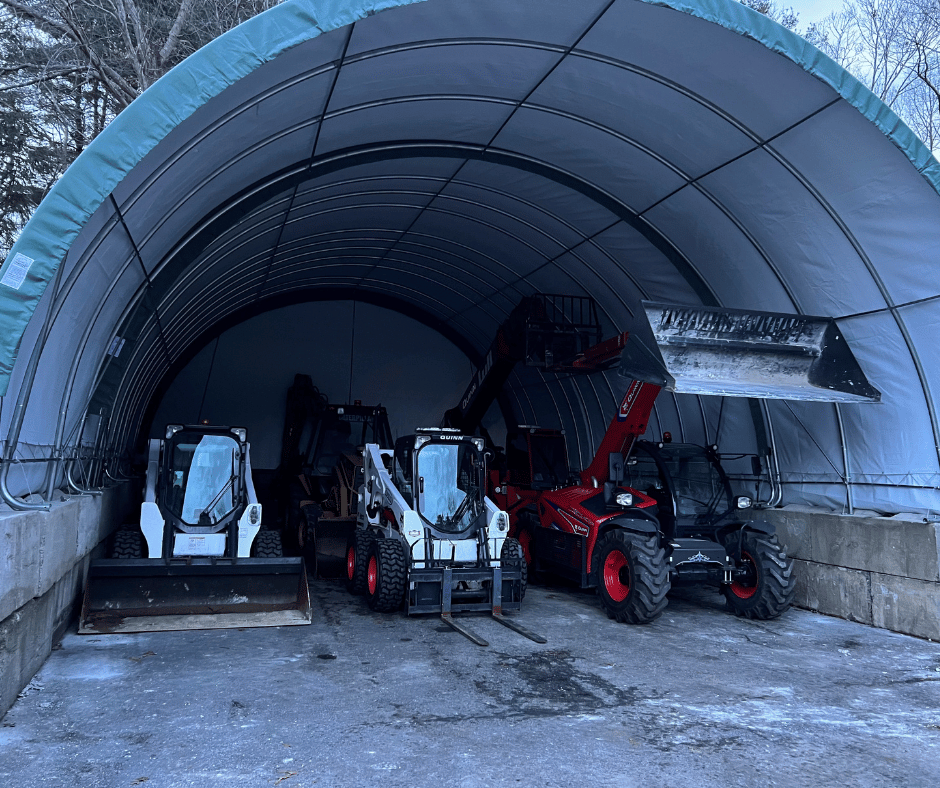

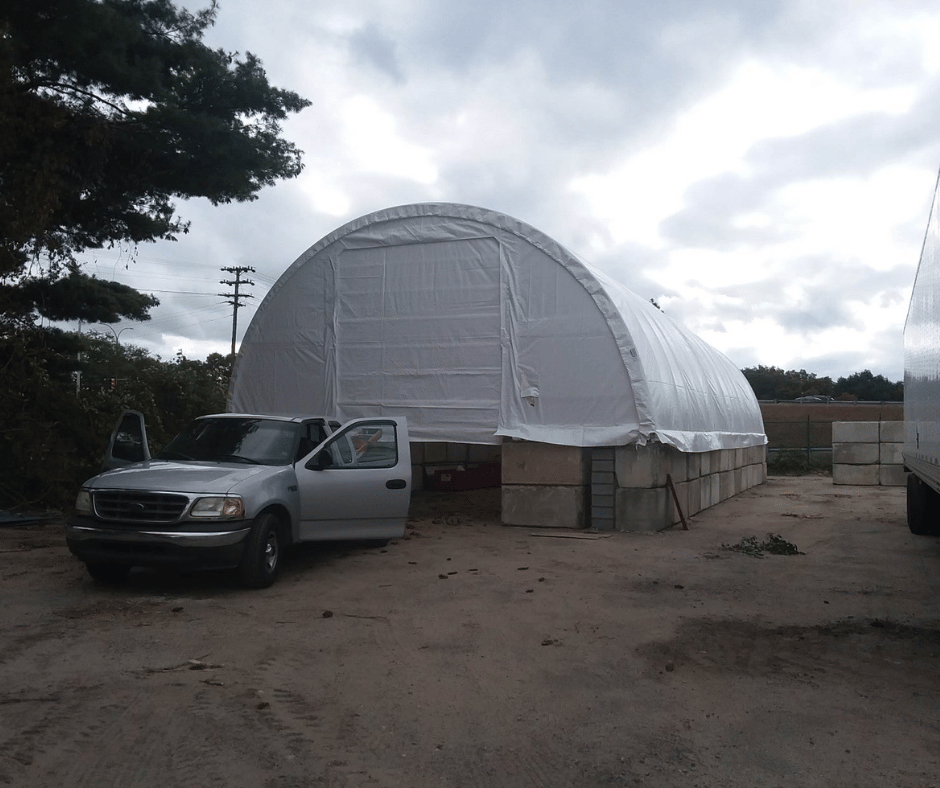

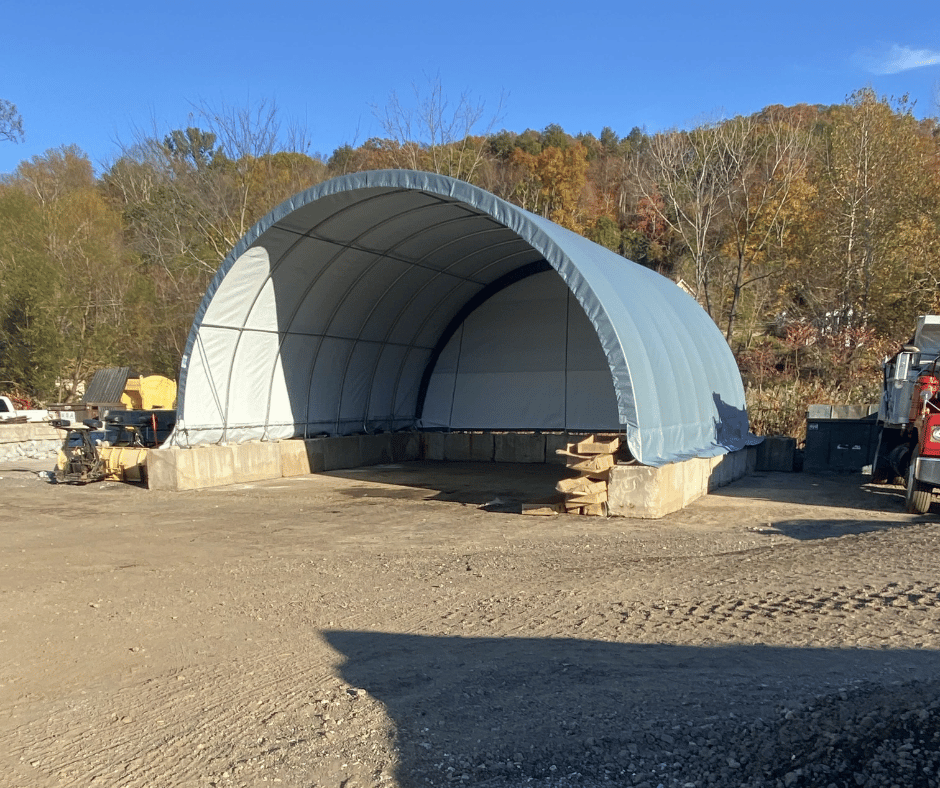

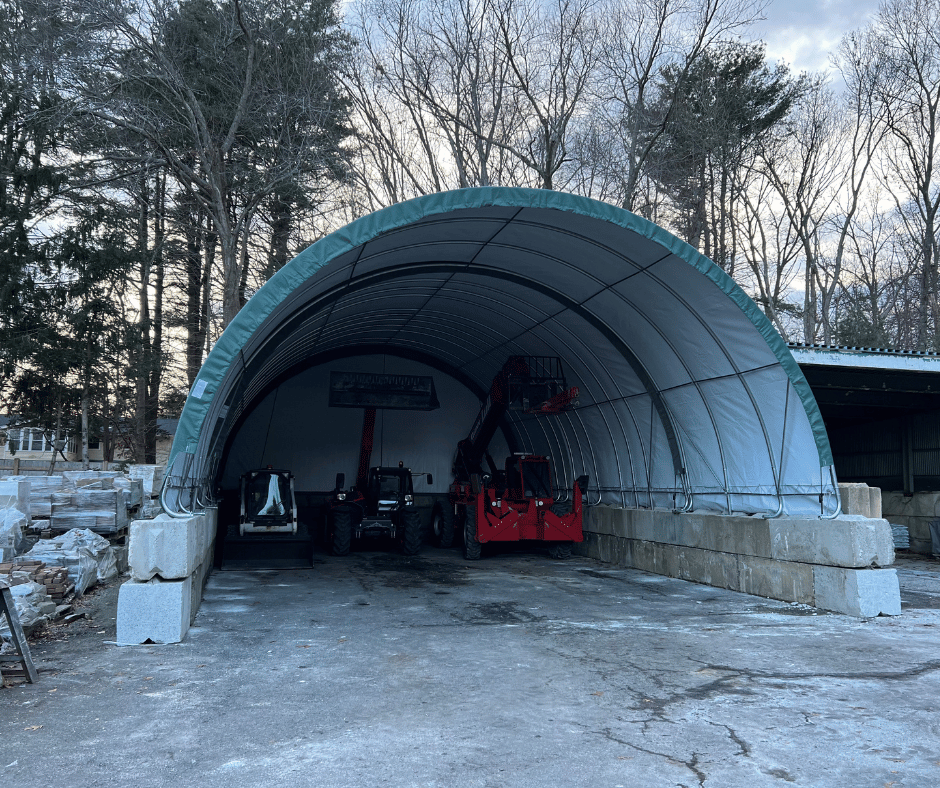

The 30’Wx30’Lx15’H Three Car Round shelter can easily accommodate multiple vehicles. When not used for vehicle storage, the 900 square feet shelter can be used to store a large number of items and equipment. The large area available makes it ideal to host a fabrication area and workshop. Every arch base is accompanied with anchors, which enable the shelter to be built on any kind of surface.

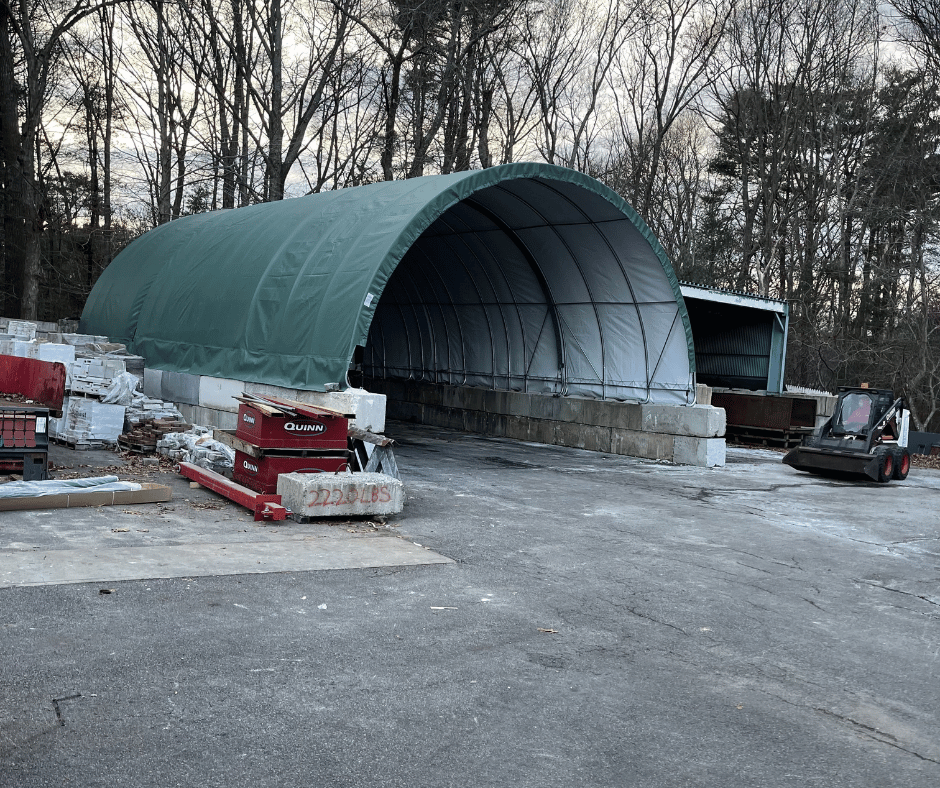

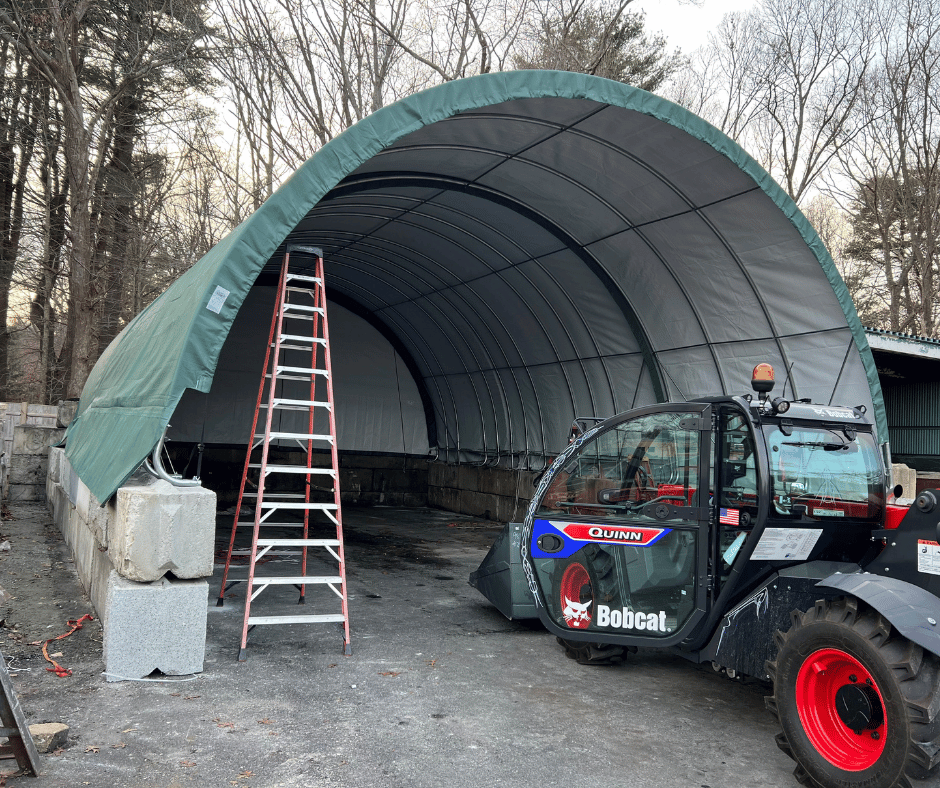

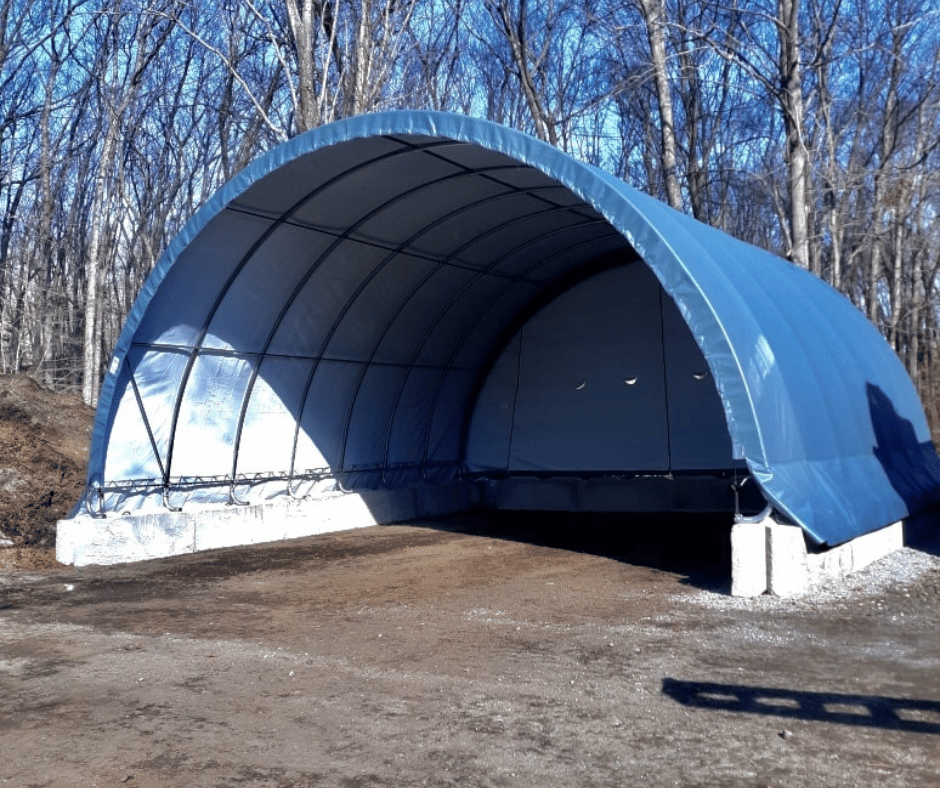

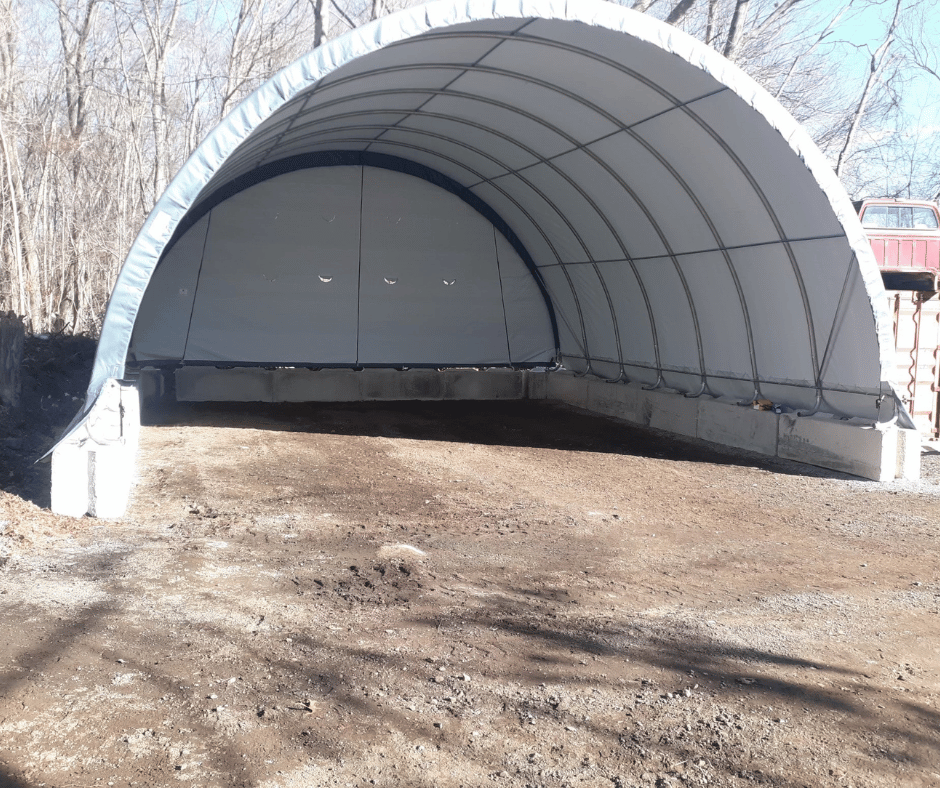

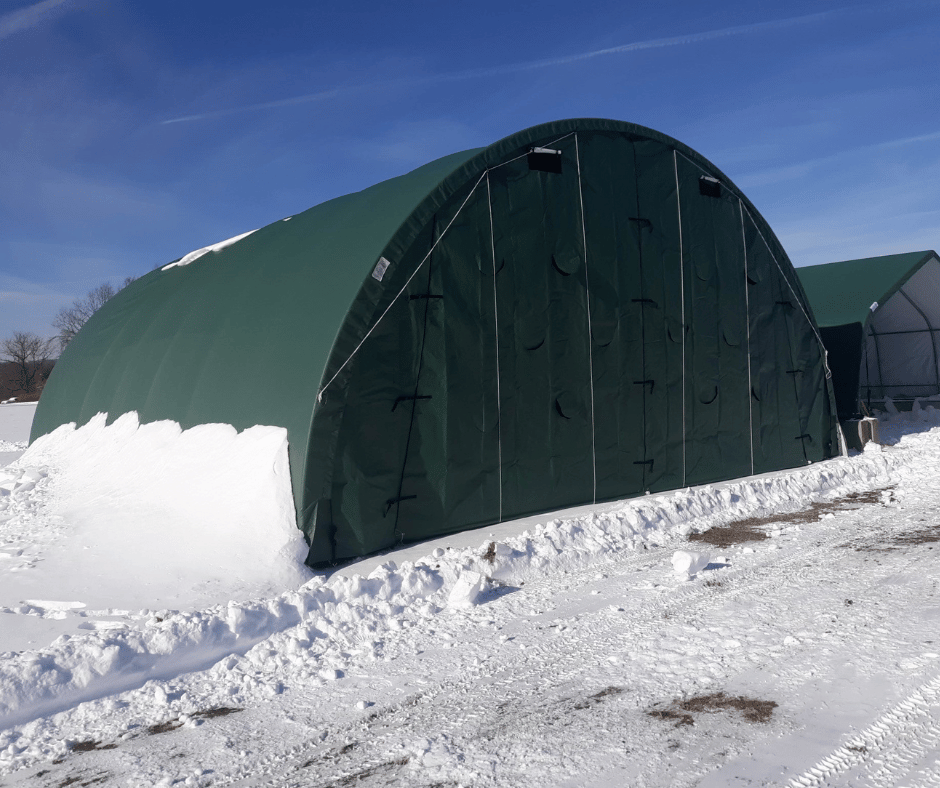

The 30’Wx30’Lx15’H Three Car Round shelter provides superior protection, without sacrificing portability. Besides storage, the shelter can be also used as an outdoor workshop. The round-style design ensures maximum height clearance and extra storage space at the side enclosures.

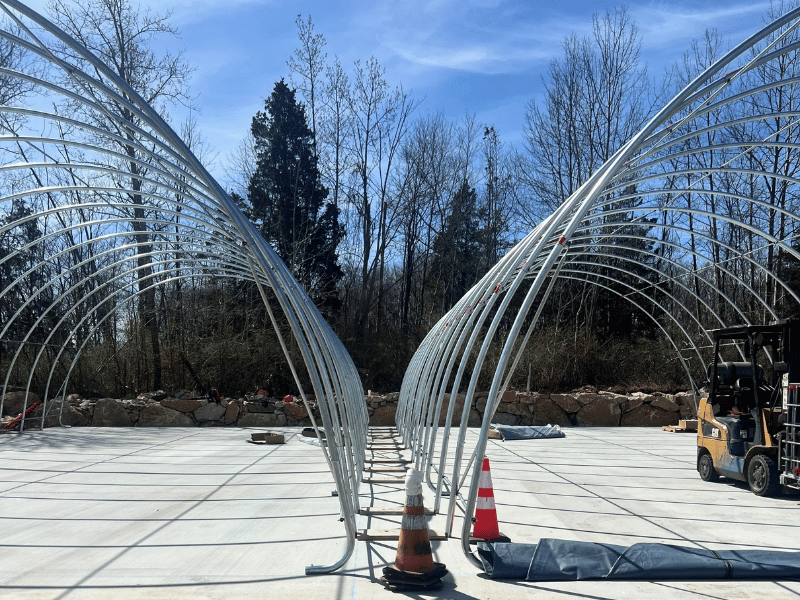

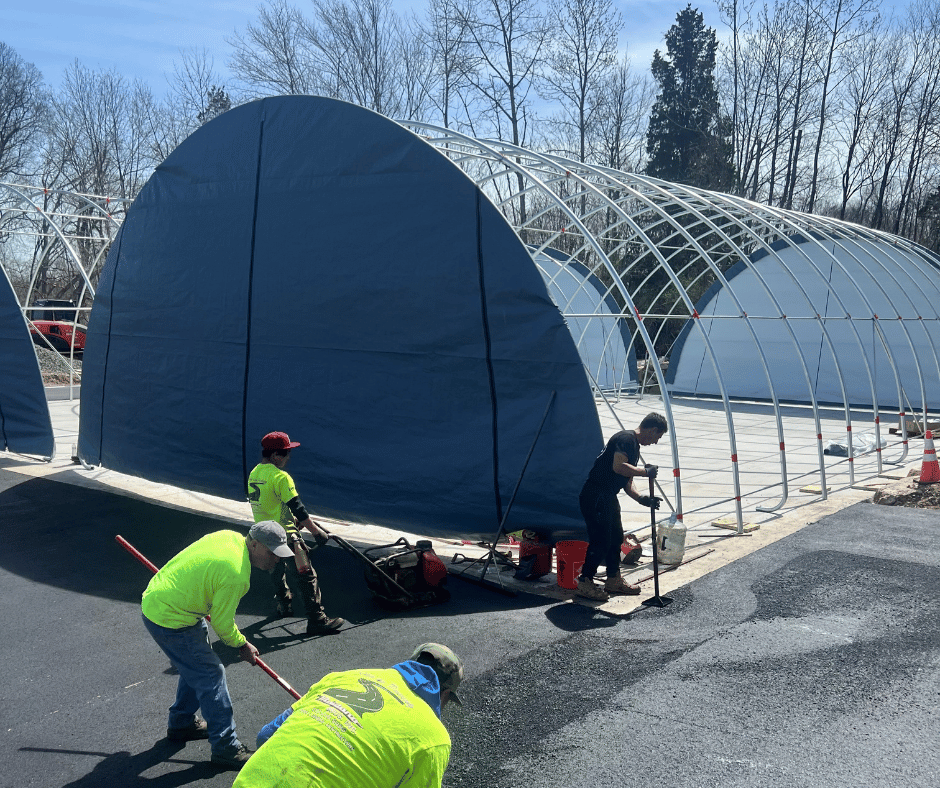

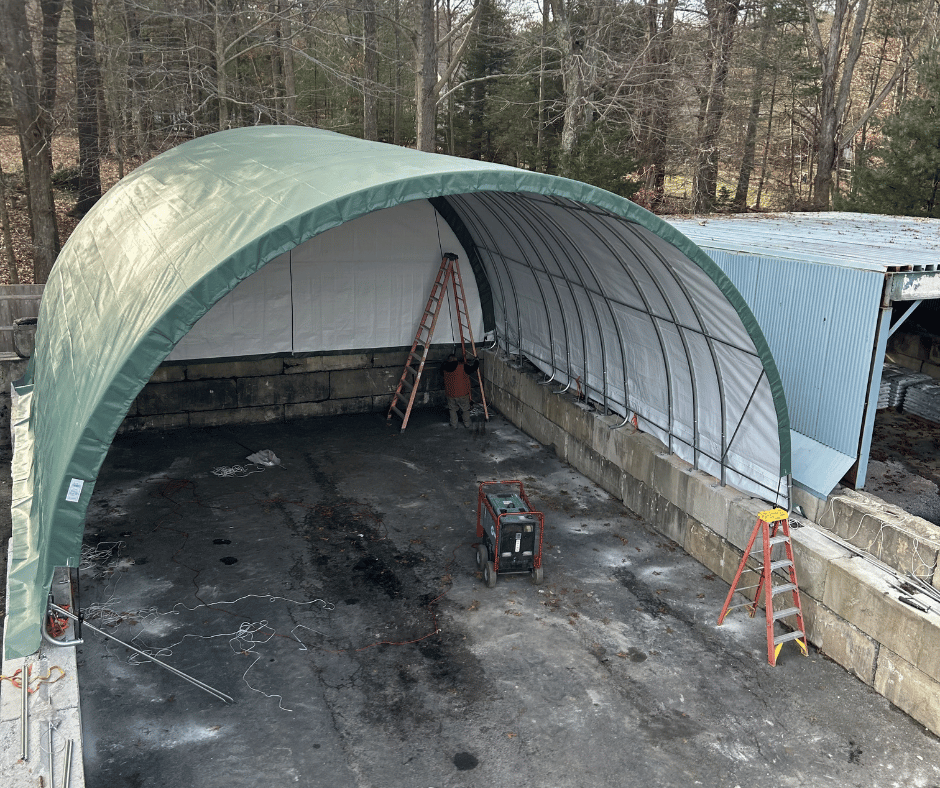

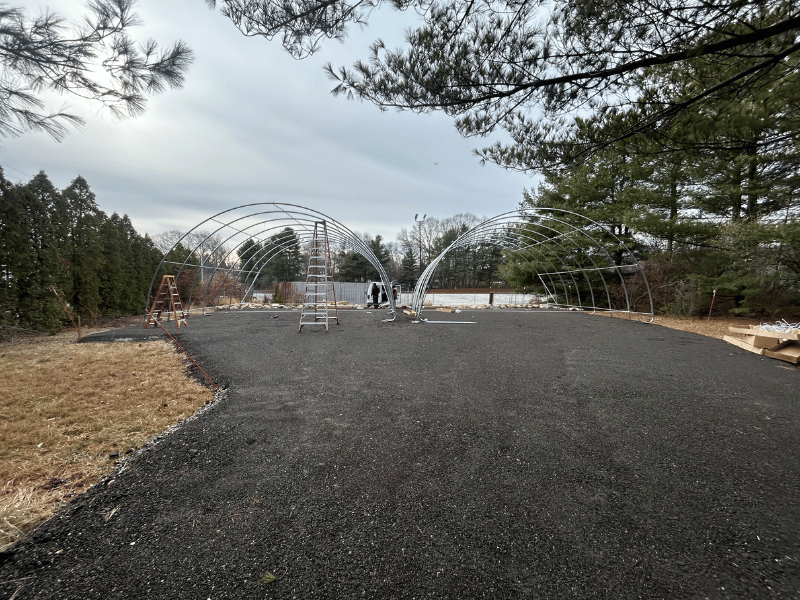

Assembling a Rhino Shelter requires minimal effort and tools. The frame of the shed is designed in a specific manner, so that no cutting or drilling is required.
The shelter is made using rugged and long-lasting industrial grade 10oz. fabric and is available in two distinct colours. The entire cover, including doors, are constructed with a CPAI-84 rated Poly with woven backing, which is UV resistant and fire retardant. The outer and inner layers sandwich a special layer in between called Inner Black Scrim. This layer has a coating that prevents any sunlight from infiltrating the material. All the components for the frame are manufactured using galvanized steel.
Ratchet straps come standard with Rhino Shelters. The shelter cover never loosens or sags, thanks to the strong webbing material used in the ratchet strap. The tight fit allows the ratchet straps to withstand much higher snow loads than ordinary rope. Every door contains a pouch to accommodate poles. Earth anchors and 36″ stainless steel tether and drive rod come with the package.
- Heavy Duty Galvanized Finish on All Steel Frame Components for Maximum Strength & Long Life
- All Pre-Drilled, Easy Bolt Together Assembly
- Easy Bolt Together Design – all Pre-drilled & Cut
- Wind Brace Support on Both Sides
- Ratchet Straps for a Drum Tight Fit
- Triple zipper doors on Both Ends
- Two (2) complete Roll-up Door Kits
- Protective Plastic Tube End Caps – All Open Ends
- Standard Thread Plated Hardware Kit with Retaining Nuts & Protective SS Washers
- Quick Assembly Wrench included
- Heavy Duty Poly Rope for Main Cover Tie Down
- Heavy Duty Grommets on Cover & Doors
- Fourteen (14) Permanent Anchors
- Nine (9) Box Shipment
- Assembles in Approximately Six (6) Hours
- 1190 lbs. Shipped in Nine (9) Boxes Via Motor Freight
- Fourteen (14) permanent anchors included
- Assembles in 6 hours
- Anchors Fourteen (14) 36″ Anchors with U-Bolts & 36″ Drive Rod

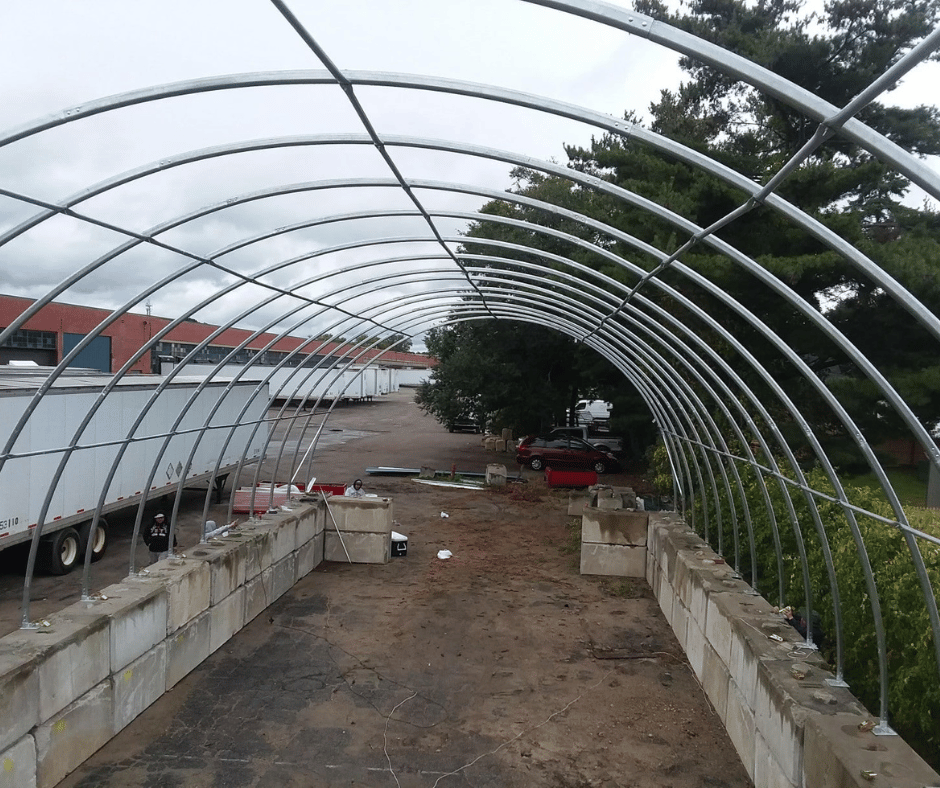

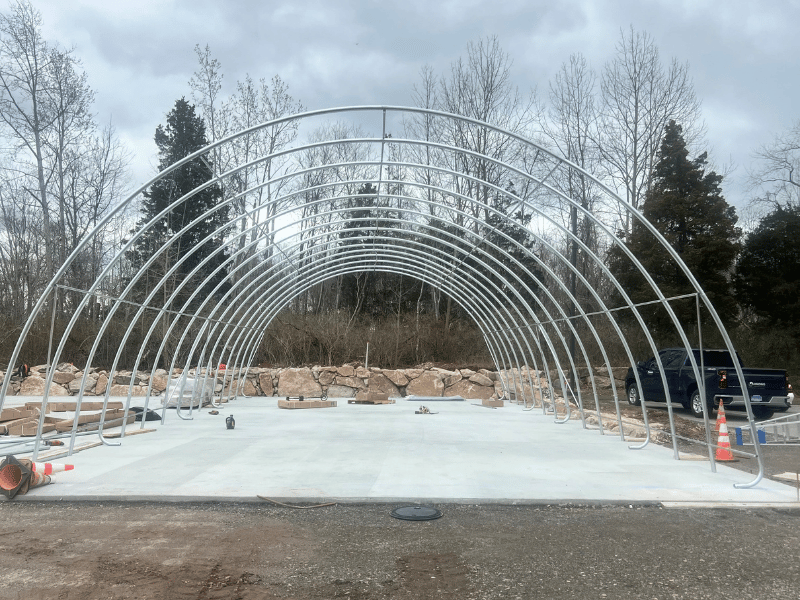

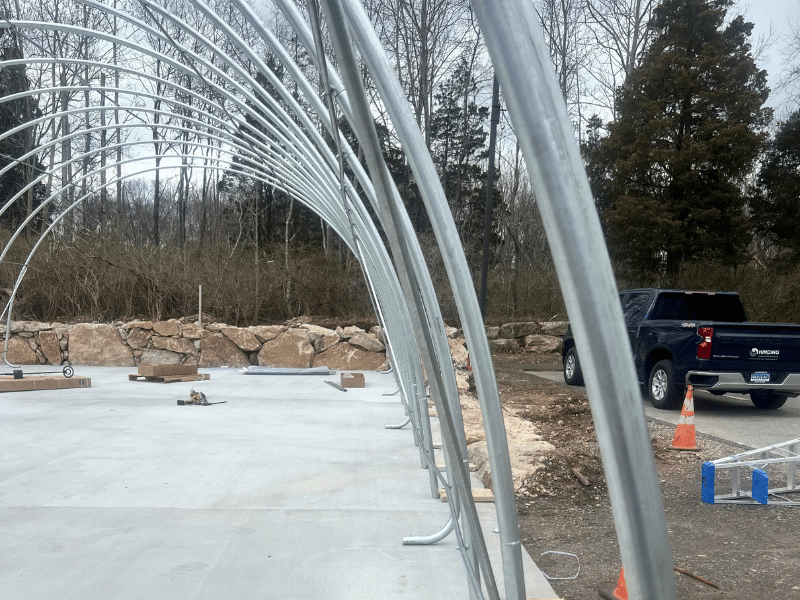

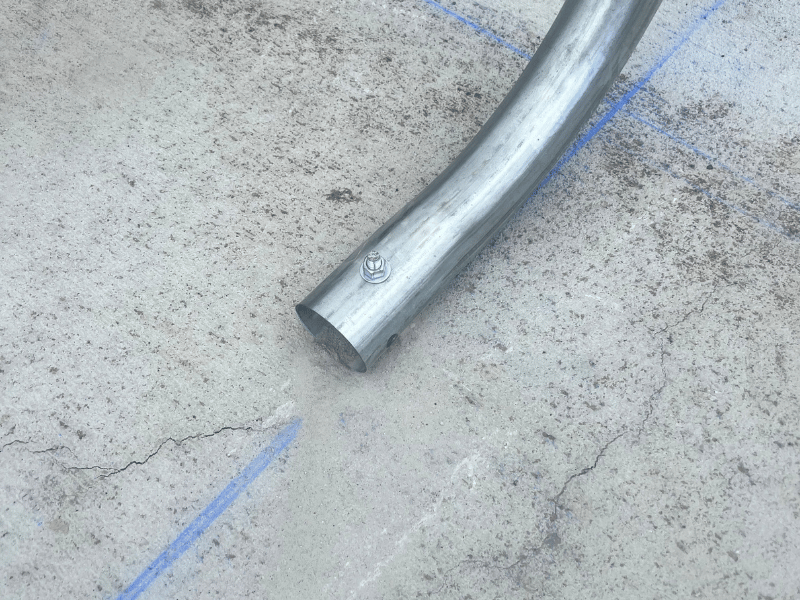

- Arches Seven (7) on 60″ spacing: 2-3/8″ galvanized frame members

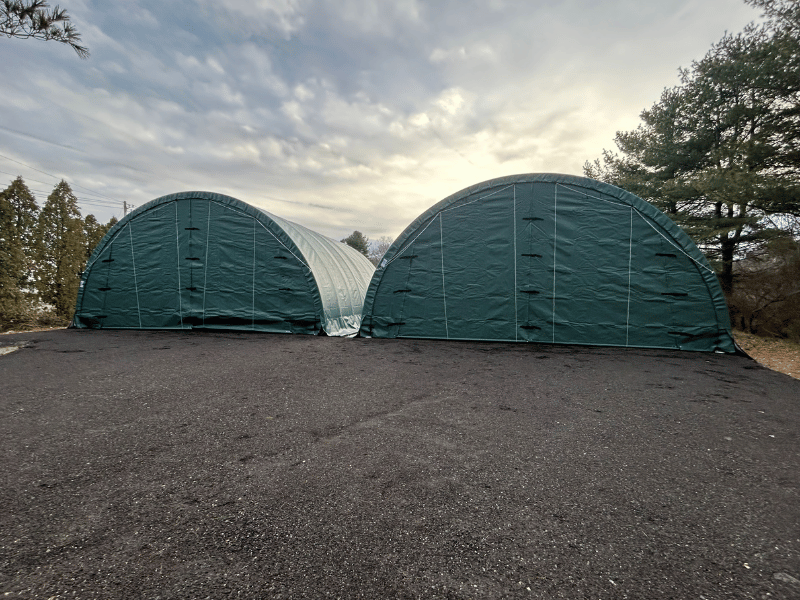

- Available Colors Forest Green, Gray
- Fire Retardant Standard Main Cover & Doors meet CPAI -84 Section 5
- Interior Color White
- Main Cover UV Protected 24 mm, fabric-backed polyethylene, 10 oz weight
- Nominal Size 30′ Width x 30′ Length x 15′ Height
- Shipping Method Shipped via Motor Freight Only
- Shipping Weight 1,190 lbs. shipped in nine (9) boxes
- Standard End Door Size 27′ Width x 10’2″ Height: Triple zipper door at each end
- Nominal Size
- 30’ Wide x 30’ Long x 15’ High
- Seven (7) on 60” Spacing 2-3/8” Dia. Frame Members
- Standard End Door Size
- 27’ Width X 10’2″ Height
- Available Colors
- Outer Colors: Forest Green, and Grey
- All Interiors: White Only
- Shipping Weight
- 1190 lbs shipped in Nine (9) boxes Shipped via Motor Freight
- Box Dimensions
- Box 1: 96″ Long x 19″ Wide x 5″ High
- Box 2: 96″ Long x 19″ Wide x 5″ High
- Box 3: 96″ Long x 19″ Wide x 5″ High
- Box 4: 96″ Long x 19″ Wide x 5″ High
- Box 5: 67″ Long x 17″ Wide x 5″ High
- Box 6: 41″ Long x 17″ Wide x 8″ High
- Box 7: 63″ Long x 9″ Wide x 6″ High
- Box 8: 101″ Long x 17″ Wide x 8″ High
- Box 9: 89″ Long x 22″ Wide x 7″ High
- Main Cover
- UV Protected Fabric Backed Poly Material 10 0z. Weight. 24 Mil. thick.
- Fire Retardant Standard
- Main Cover & Doors meet CPAI -84 Section 5
- Fourteen(14) 36” Anchors with U-Bolts & Drive Rod Std.
- Stock Number
- * – Color Prefix: Green, Grey, etc.
