Sale!

12’W x 20’L x 8’H – (House Style)

$1,199.00

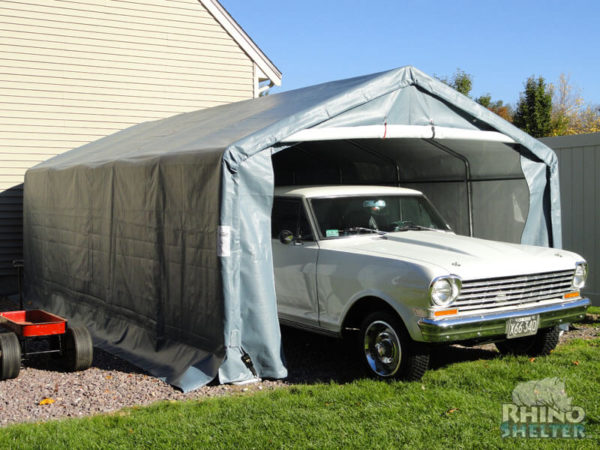

This instant garage measures 12 feet wide by 20 feet long and 8 feet high. The house style shape provides extra side wall clearance for maximum head room. It makes a perfect storage solution for vehicle protection and storage, equipment and material storage, and workshop areas. The double-zipper doors roll up and down for total protection with easy drive-thru capability.

The pre-drilled frames make for easy assembly with minimal hand tools. The main cover and doors are made from long life UV resistant and fire retardant poly with fabric backing that are heat welded seam construction. This shelter is available in forest green, gray, and tan color options.

Included

  • 10 oz UV Treatment  Cover
  • 2 Double Zipper Doors- 9’W x 6’H
  • 6 Cable Earth Anchor Kit
  • 1-5/8 Galvanized steel Frame

SKU: N/A Category:

Description

Exclusive Features



  • Heavy Duty Galvanized Finish on All Steel Frame Components for Maximum Strength & Long Life
  • Easy Bolt Together Design – All Pre-drilled & Cut
  • Wind Brace Support on Both Sides
  • Double Zipper Door with Bottom Pocket
  • Four(4) Bungee Cord Tie Backs for Doors
  • Protective Plastic Tube End Caps – All Open Ends
  • Standard Thread Plated Hardware Kit with Retaining Nuts & Protective SS Washers
  • Quick Assembly Wrench included
  • Heavy Duty Poly Rope for Main Cover Tie Down
  • Heavy Duty Grommets on Cover & Doors
  • Two Box Shipment – easily unloaded and transported
  • Average Install time – 2 hours

Easy Fit Together Design – all Pre drilled & Cut

Pipe Size

Designed For Heavy Snow Load

Click here Fabric Details

Product Packaging Details

permanent anchors

Click here for Steel Tubing Details

Standard Specifications

  • Nominal Size 12’ Wide x 20’ Long x 8’ High
  • Arches 6 on 48″ spacing
  • 1-5/8” Diameter Frame Members
  • Standard End Door Size10’W x 6’H at edge double zipper door each end
  • Available Colors –
  • Exterior: Green, Gray, or Tan
  • Interior: Bright White
  • Shipping Weight Shipped in 2 boxes 290 lbs
  • Pallet Dimensions
  • 40″x 67′ x 22″
  • Box Dimensions
  • Box 1: 63.5″ Long x 17.5″ Wide x 7.5″ High
  • Box 2: 66.5″ Long x 20.5″ Wide x 8.75″ High
  • Main Cover
  • UV Protected Fabric 24 mil Backed Poly Material 10 oz. Weight
  • Fire Retardant Standard
  • Main Cover & Doors meet CPAI -84 Section 5
  • Anchors
  • Six(6) 36” Anchor with U-Bolts & Drive Rod
  • Stock Number
  • 12’x20’x8- GA122008HGN, GA122008HGY, GA1222008HTN

Product Documentation

  • the product spec sheet
  • the assembly manual

Additional information

Dimensions 20 × 12 × 8 in
Color :

Green, Gray, Tan
