12’W x 20’L x 8’H – (Animal Run-In)

$991.00 $710.00

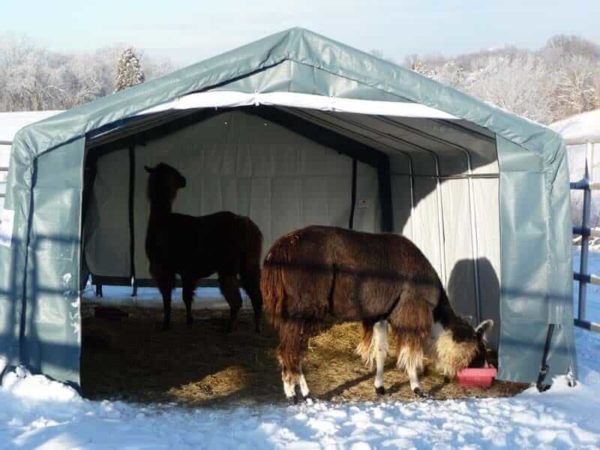

The Rhino Shelters House-style Run In shelter is designed to provide protection for livestock, while not sacrificing ventilation. The house-style roof prevents any water logging or snow build-up. Assembling a Rhino Shelter requires minimal effort and tools. The frame of the shed is designed in a specific manner, so that no cutting or drilling is required.

The fabric for the main cover is CPAI-84 rated and manufactured using fire retardant, UV resistant poly, featuring woven backing and heat-welded seams. The outer and inner layers sandwich a special layer in between called Inner Black Scrim. This layer has a coating that prevents any sunlight from infiltrating the material.

End panel doors sold separately.

Included

  • 10 oz. Cover
  • 6 Earth Anchor Kit
  • 1 5/8″ Galvanized Steel Frame
  • End Panels Not Included on Livestock Shelters
Clear

SKU: N/A Category:

Description

Exclusive Features

  • Heavy Duty Galvanized Finish on All Steel Frame Components for Maximum Strength & Long Life
  • Easy Bolt Together Design – all Pre-drilled & Cut
  • Wind Brace Support on Both Sides
  • Protective Plastic Tube End Caps – All Open Ends
  • Standard Thread Plated Hardware Kit with Retaining Nuts & Protective SS Washers
  • Quick Assembly Wrench included
  • Heavy Duty Poly Rope for Main Cover Tie Down
  • Heavy Duty Grommets on Cover
  • Two Box Shipment – easily unloaded and transported
  • Average Install time – 2 hours

Pipe Size

Click Here for Fabric Details

Click Here for Steel Tubing Details

Standard Specifications

  • Product Size 12′ Wide x 20′ Long x 8′ High
  • Arches Six(6) on 48″ Spacing 1 5/8″ Frame Members
  • Available Colors Outer Colors: Forest Green, Grey and Tan
    All Interiors: White Only
  • Shipping Weight 289 lbs shipped in Two(2) boxes Shipped via Motor Freight
  • Box Dimensions Box 1: 58.5″ Long x 15.5″ Wide x 7″ High
  • Box 2: 66.5″ Long x 20.5″ Wide x 8.75″ High
  • Main Cover UV Protected Fabric Backed Poly Material 10 0z. Weight. 24 Mil. thick. Fire Retardant Standard Main Cover meet CPAI -84 Section 5
  • Anchors Six(6) 36″ Anchors with U-Bolts & Drive Rod Std.
  • Stock Number LV122008HGN, LV122008HTN

Product Documentation

  • the product spec sheet
  • the assembly manual

Additional information

Dimensions 20 × 12 × 8 cm
Color :

Gray, Tan
